BR-TY4RG5-UT-NSR-0
$1,420.00

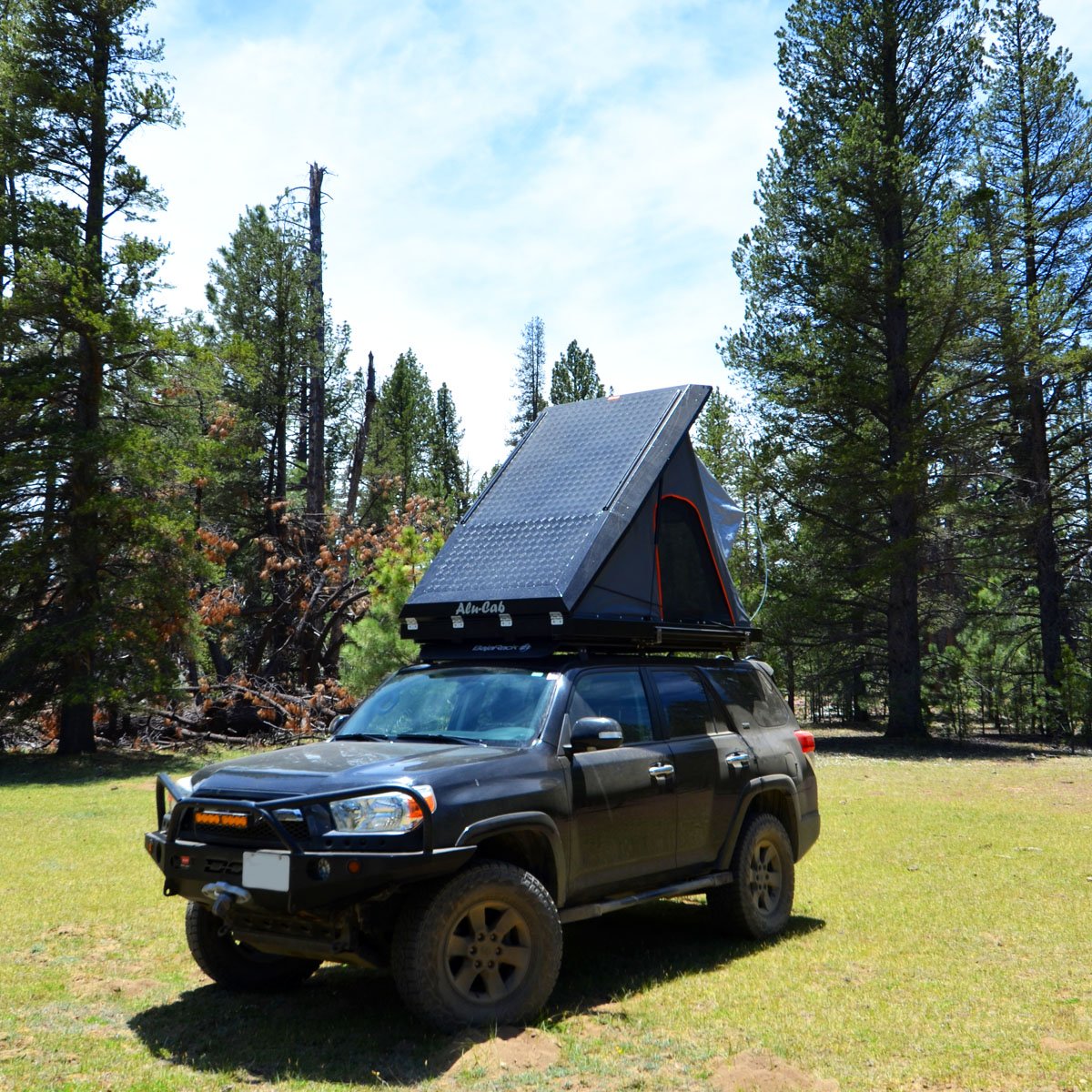

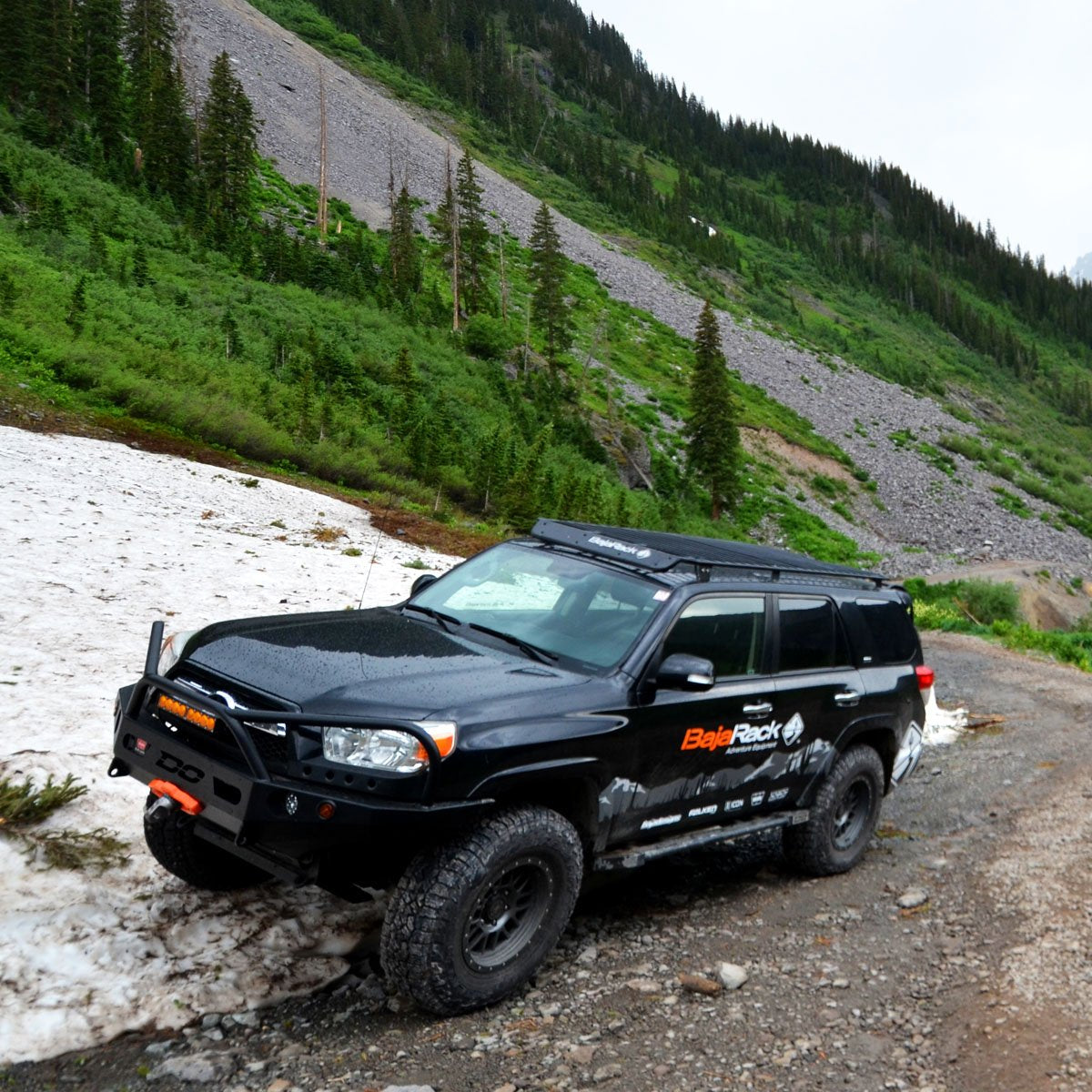

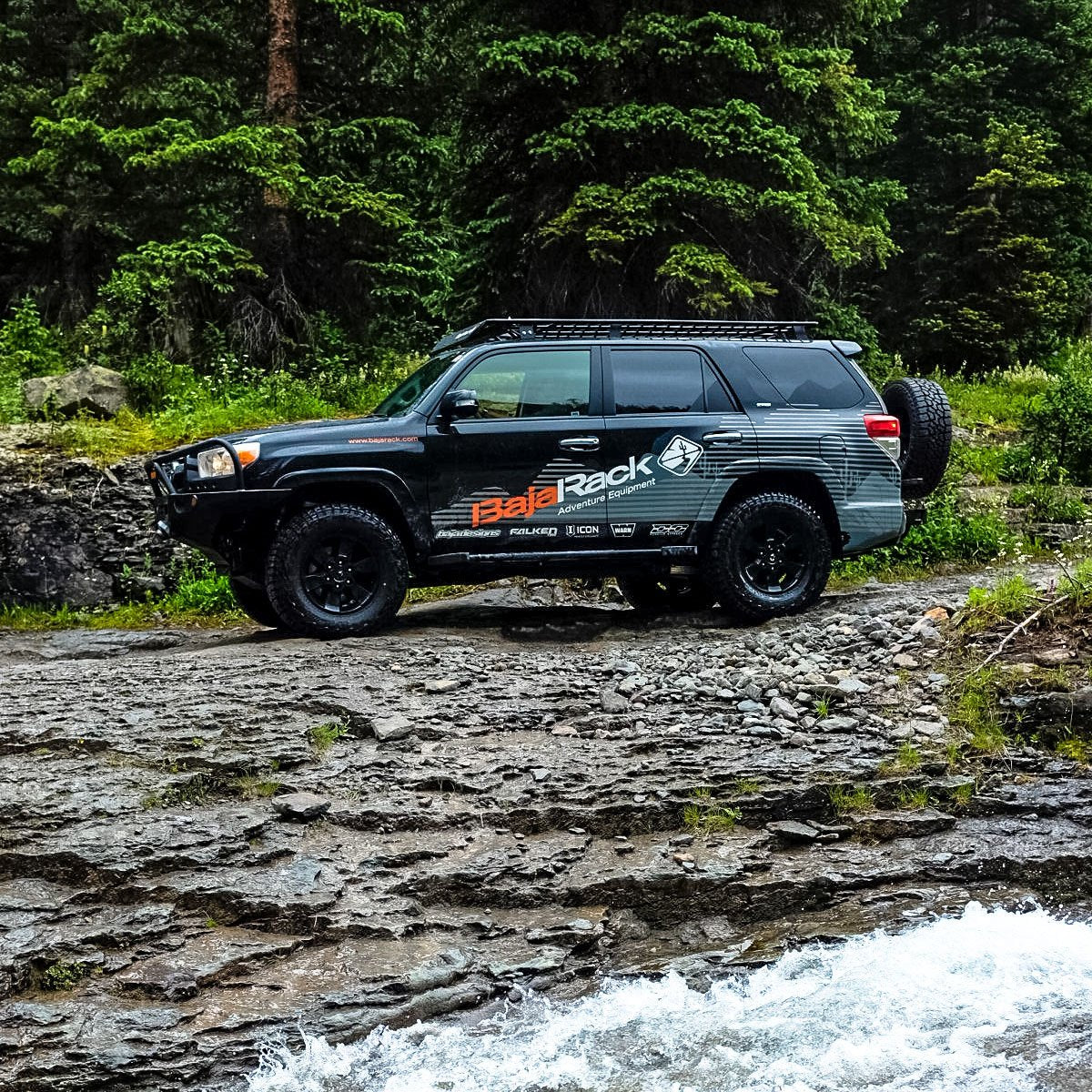

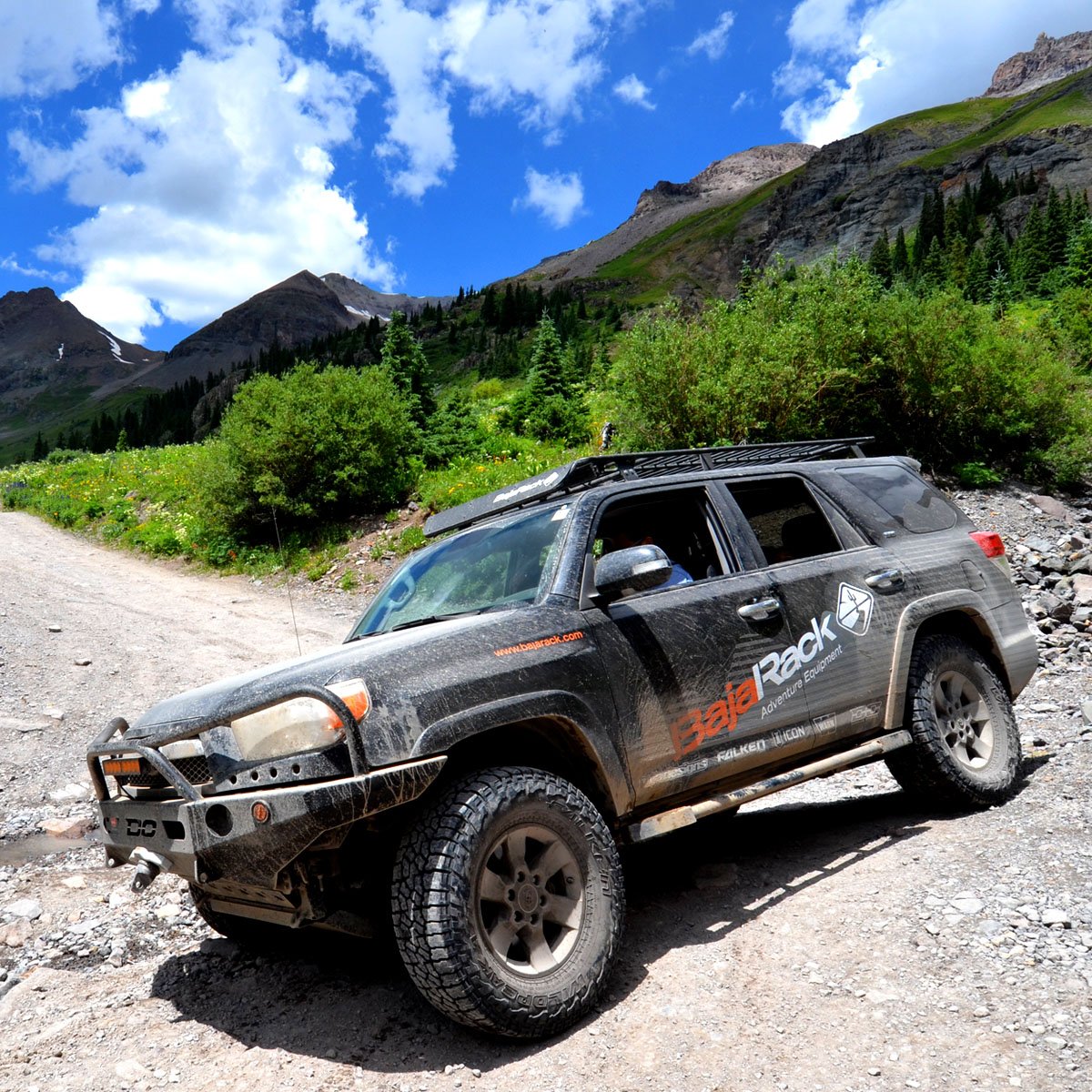

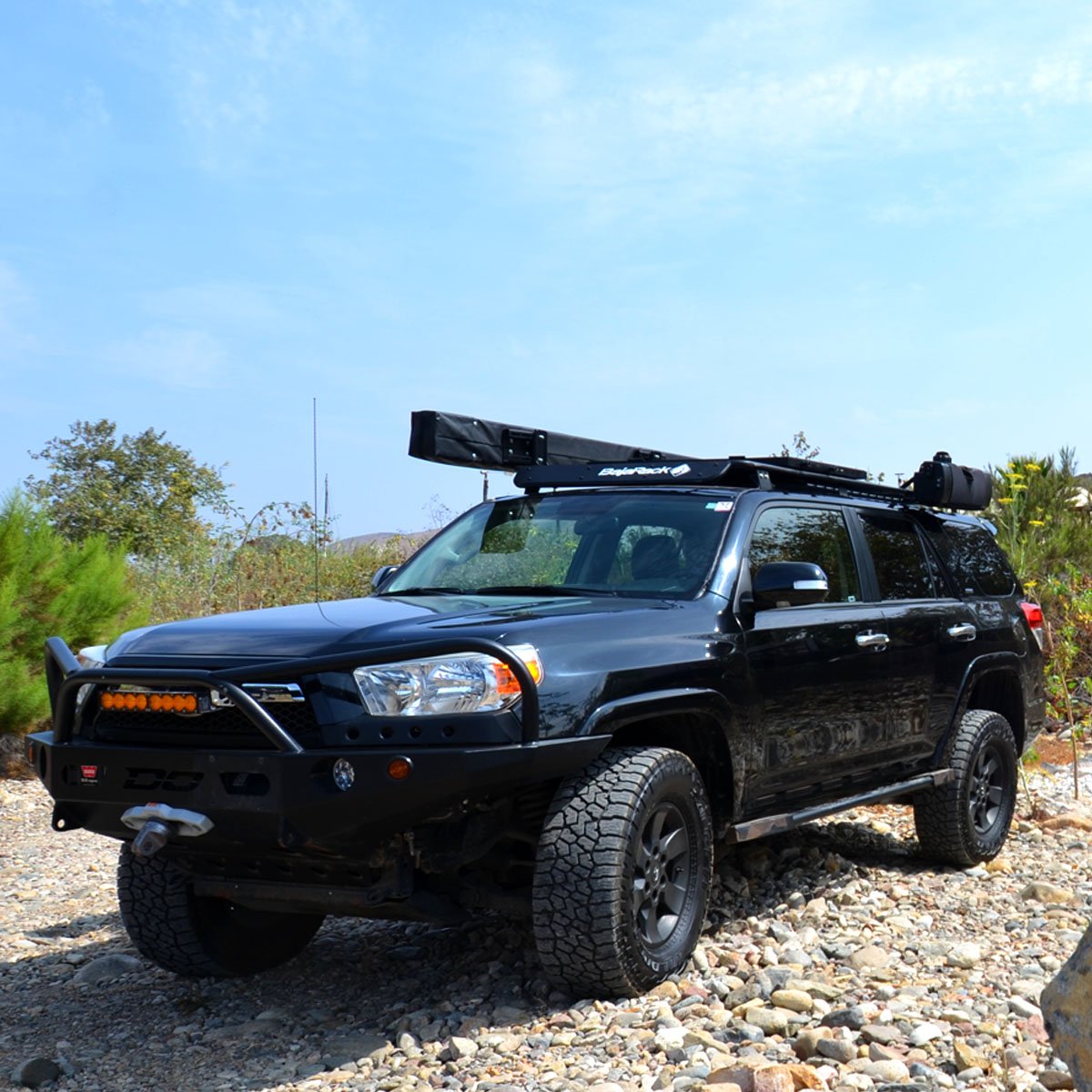

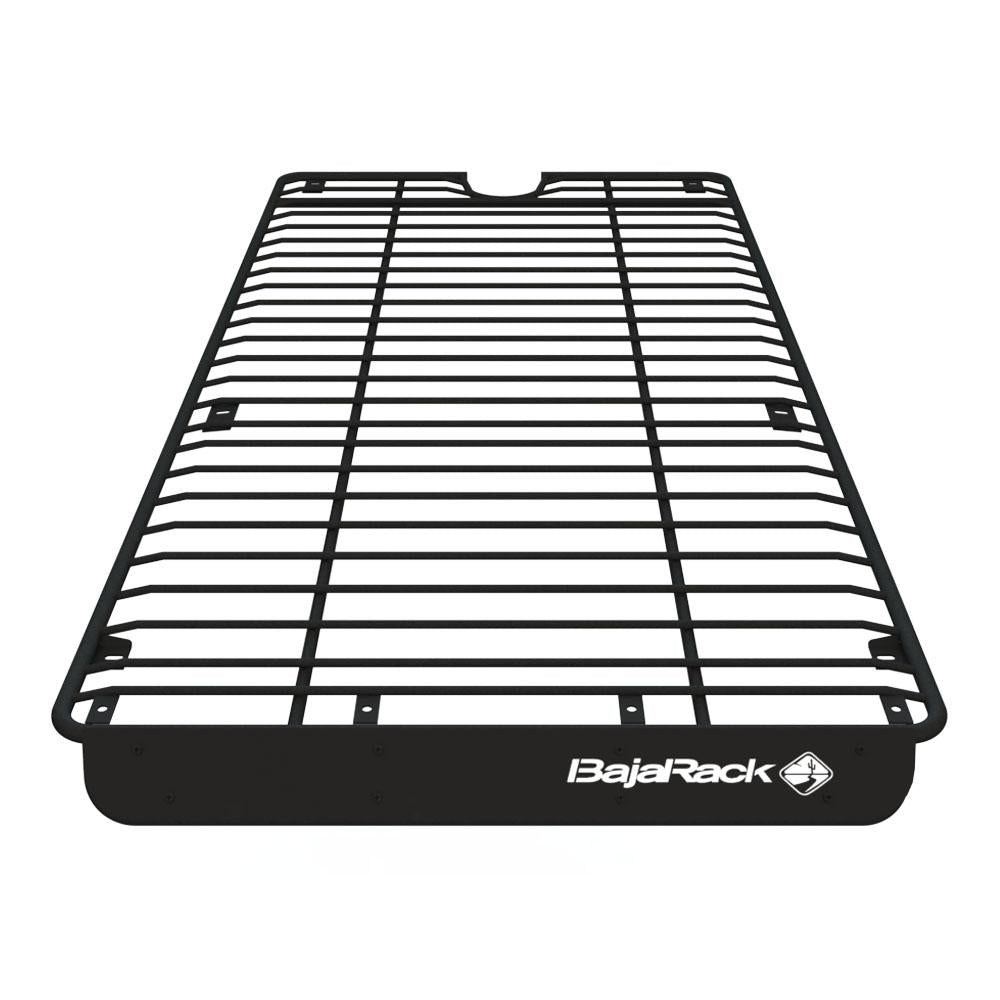

If garage height is a concern, this rack is the best option. The installation is done directly to the body frame without drilling, the outside frame is made of 1 inch tubing and the flooring with ½ inch cold roll steel tubing.

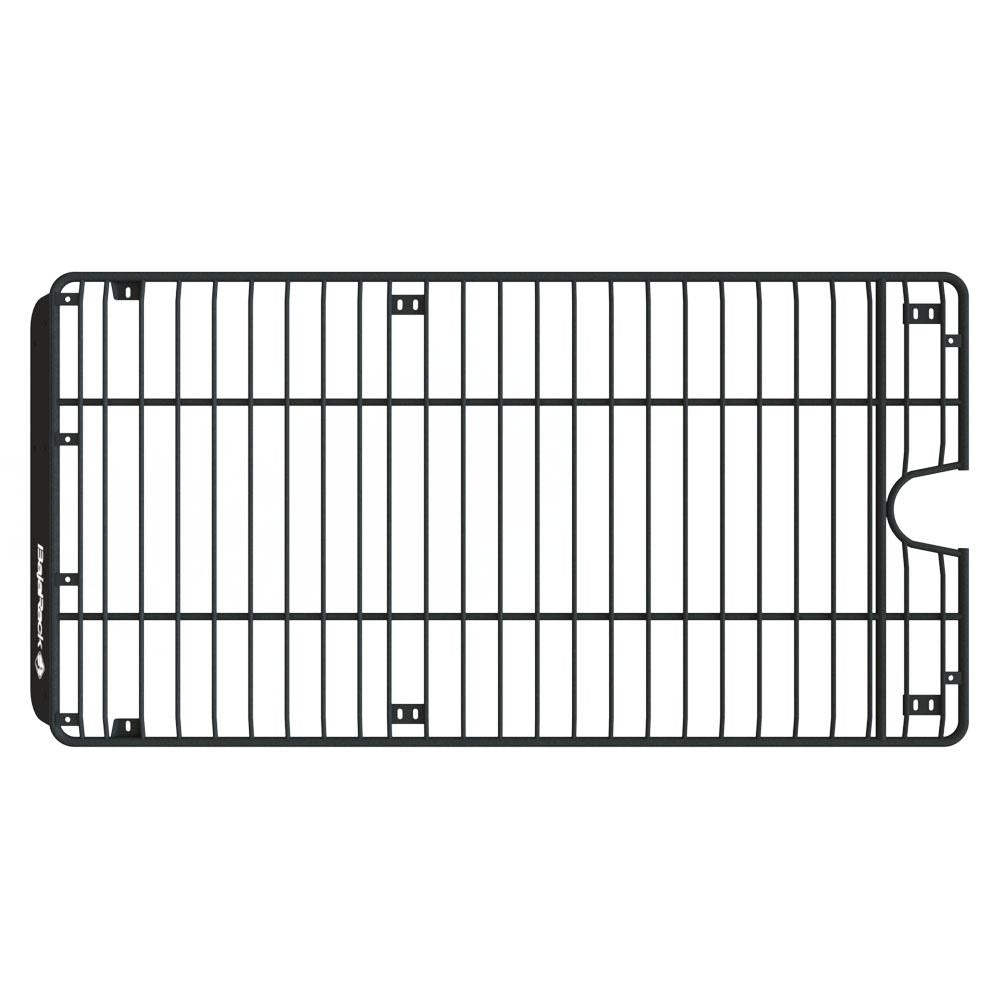

This rack was designed around the 4 factory mounting positions on the roof of the vehicle and also was designed without sunroof cutout, there is a cutoff on the floor of the rack to avoid interference with the roof antenna. No drilling required for the installation.

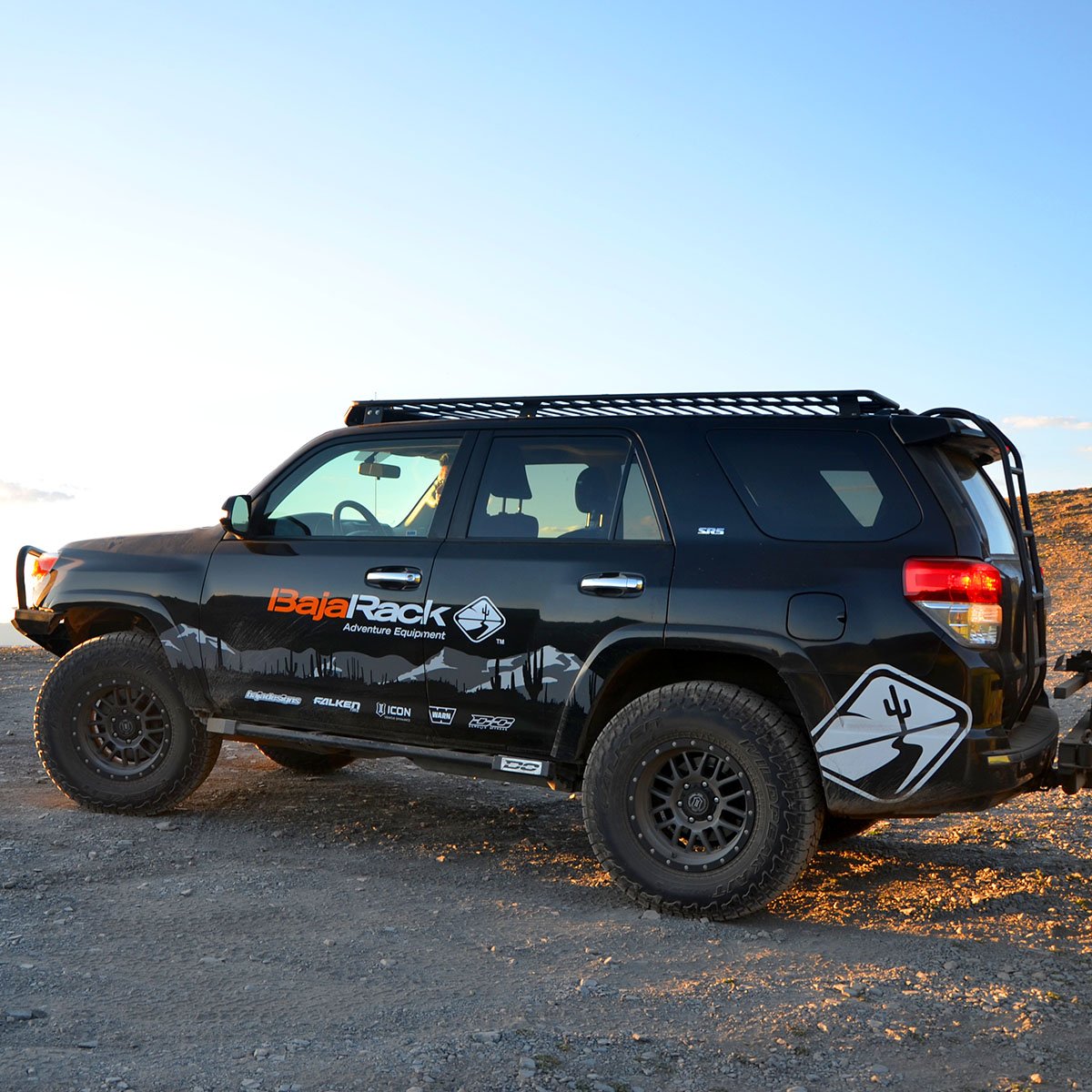

IF YOU BUY A RACK + LADDER PLEASE CHECK THIS NOTE:
Before you install your new BajaRack ladder check the gap on top of the hatch it needs to be 5/16” to 3/8” inch, if the upper top of the ladder does not enter the gap on the hatch do not install, and check the gap clearance with a dealer or shop.
EXTREMELY IMPORTANT NOTE:
Please verify the lip (edge) measurement before purchasing or installing your ladder, the standard dimension is between 0.100” (0.254mm) and 0.200” (0.508mm) if this dimension is larger than 0.200” (0.508mm) don’t install the ladder, Toyota in some models applies more sealant in this area that can cause the ladder to not fit.

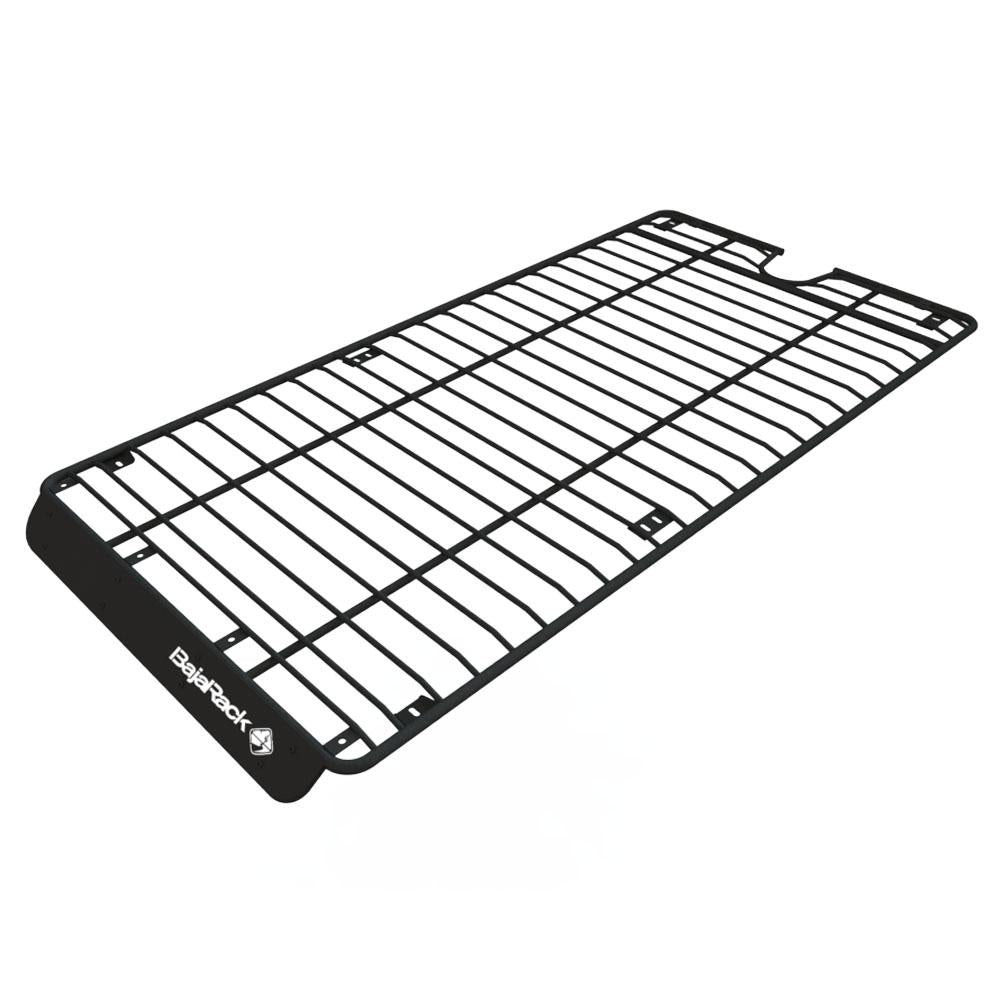

Each roof rack includes all mounting brackets, stainless steel hardware, and aluminum wind deflector.
Material and Thickness: 1” (25.4mm) and 1/2”(12.7mm) Steel tubing
Wind Deflector: .062” (1.57mm) 5050-H32 Aluminum
Finish: Epoxy primer (rust inhibitor) with black powder coating
Rack weight: 77 Lb (34.92Kg)
Load Capacity: Dynamic (while driving) 300Lb (136 kg); Static 600Lb (272 kg)
Measurements: 46” (1168.4 mm) Wide x 91.75” (2330.45 mm) Long x 1.5” (38.1 mm) tall
Total Height (Top of roof to top of rack): 4"
Cargo area: 19.16ft² (1.78m²)
Mounting method: Roof mounts (2 front adjustable brackets and 4 support brackets)
This Limited Warranty covers BajaRack products and all accessories for a period of 2 years from the date of purchase to the original owner of the product and does not apply once the equipment is sold or transferred to another person.
This Warranty does not cover the cost of removal or reinstallation of the product; Nor does it cover the cost of shipping damaged or replacement parts.
Rugged Outlander and BajaRack are not liable for damage caused by shipping or transport of BajaRack products. It is the responsibility of the original retail purchaser to inspect all products prior to acceptance and to notify the shipping carrier in a timely manner so that any claim for damages can be made. If timely notification to the shipping carrier by the original retail purchaser is not made regarding damage caused during the transport of the product, a claim for damages may not be possible, and all liability falls to the original retail purchaser. This warranty does not apply if accident, abuse, misuse, collision, overloading, modification, misapplication, improper installation, damage caused by non-BajaRack accessories, or improper service has damaged the Product.
